Description

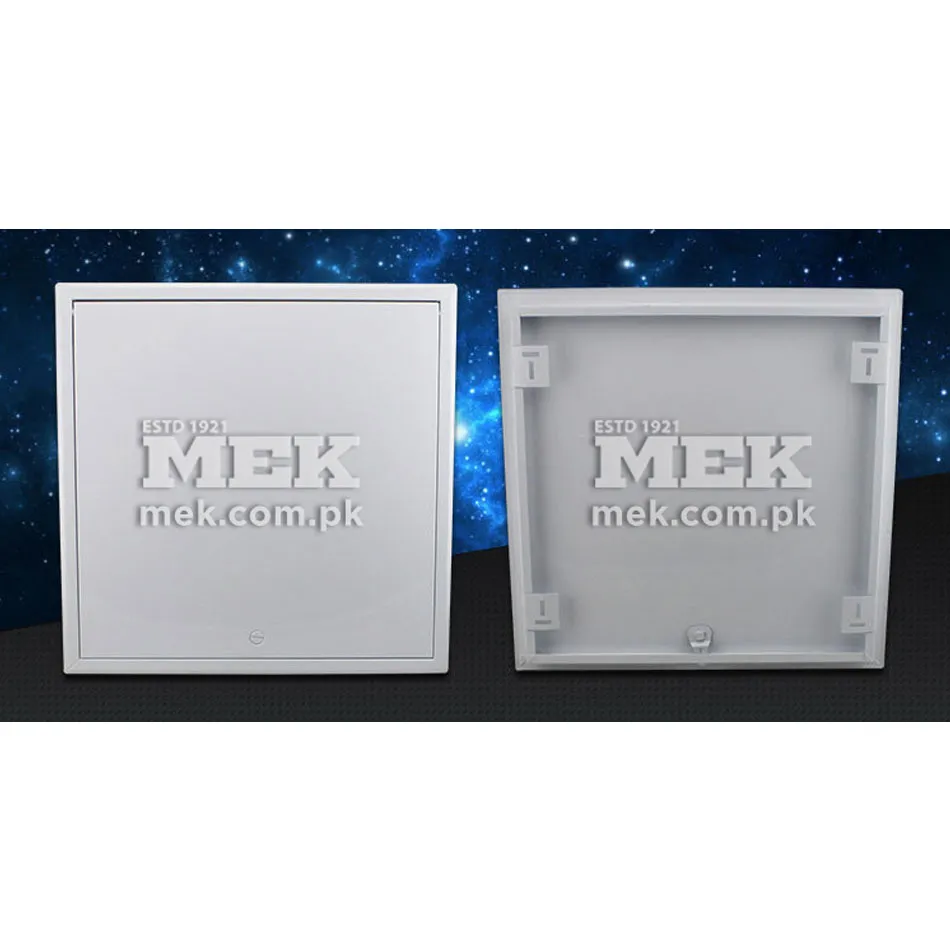

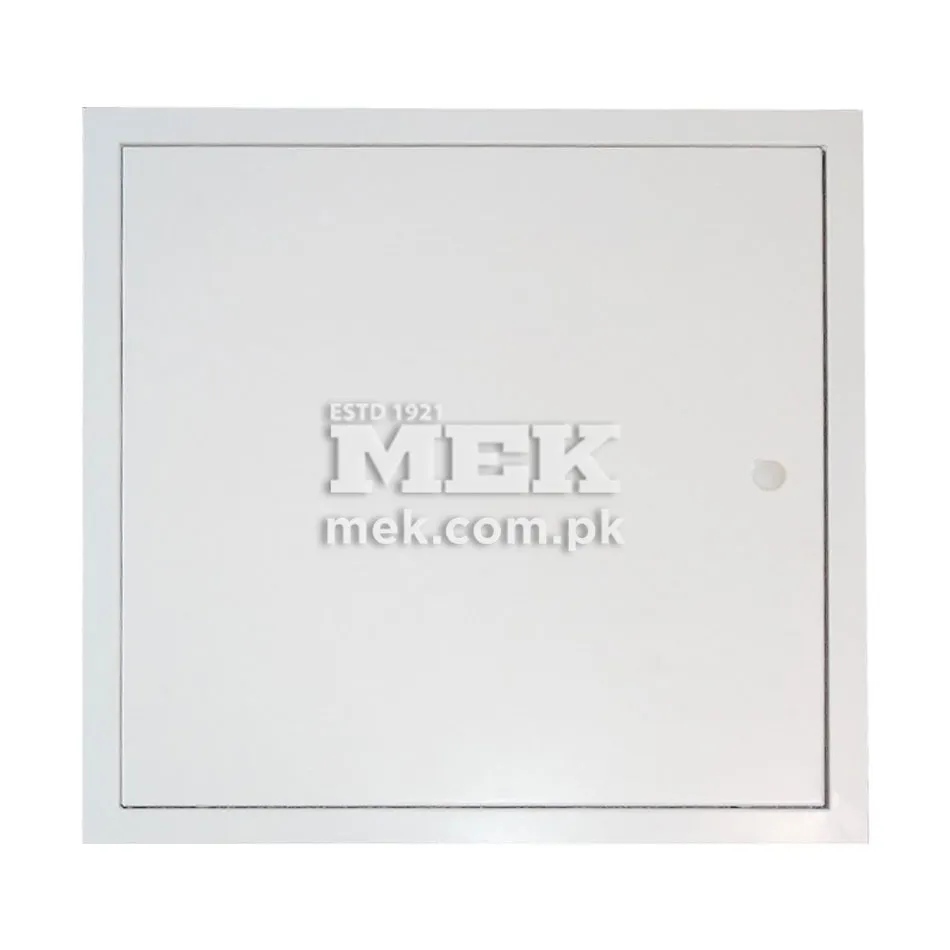

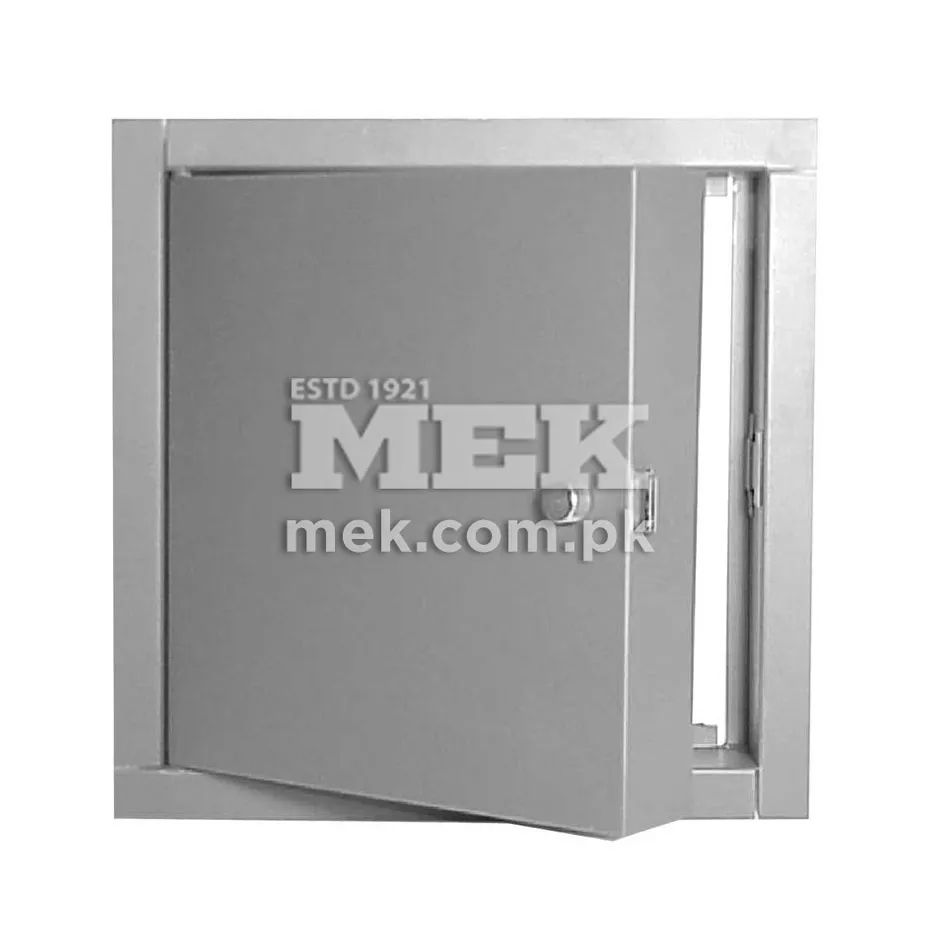

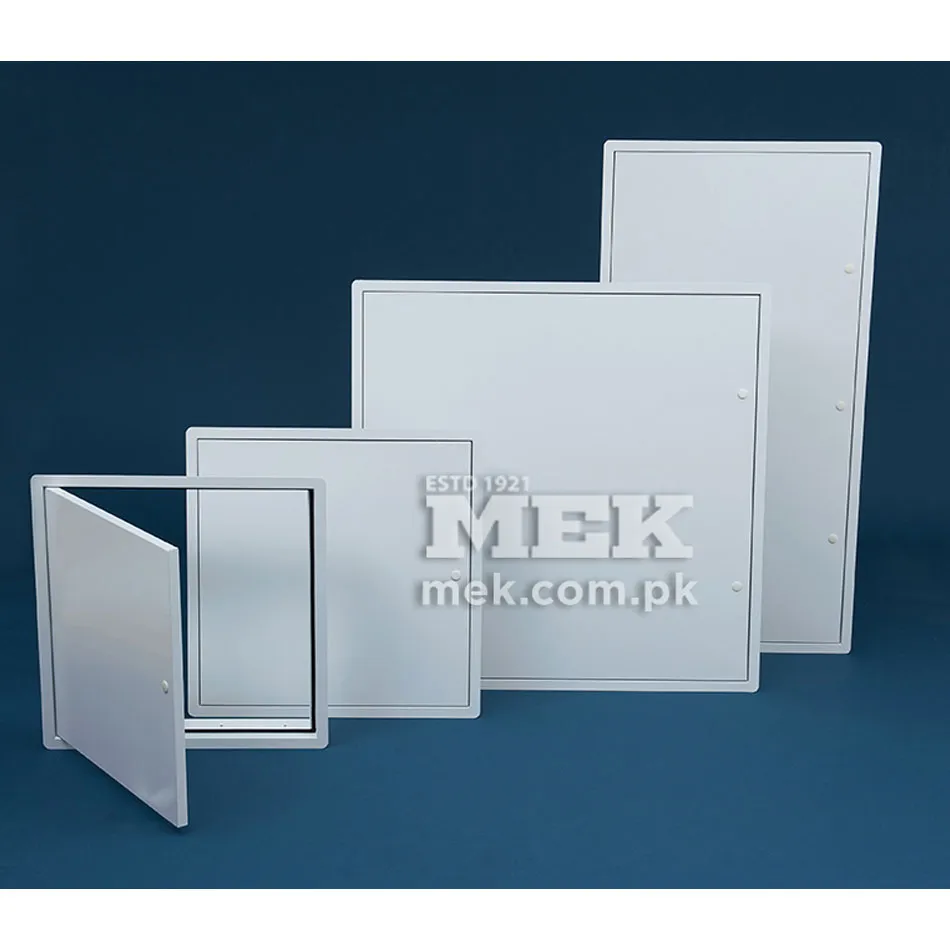

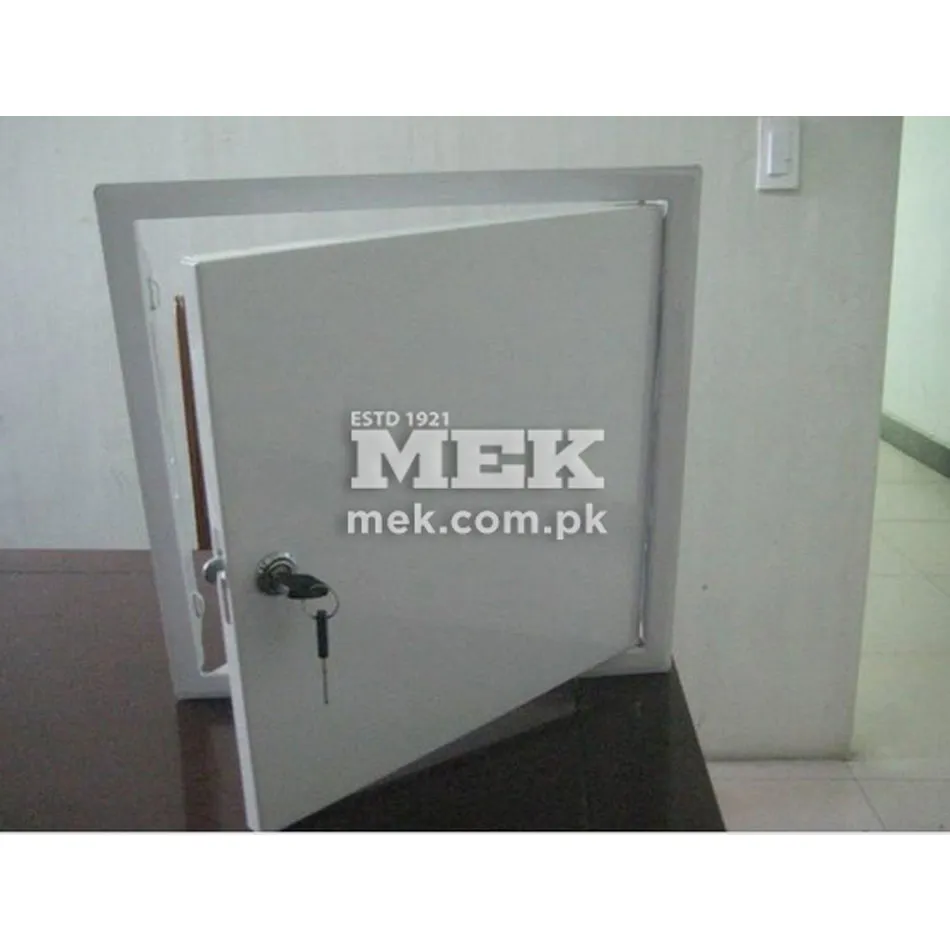

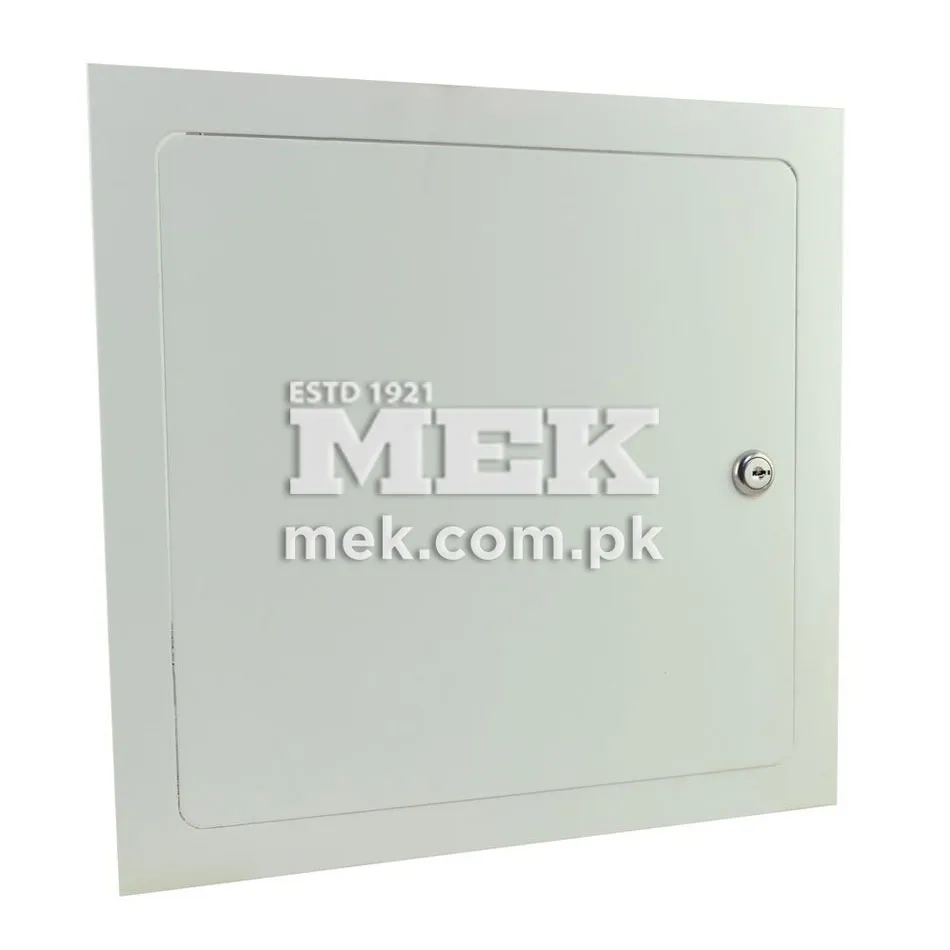

The MEK Access Panel Door is a powder-coated sheet steel door and enclosure assembly that provides controlled, lockable access to electrical equipment and services. It resists mechanical impact, keeps water and debris out with multi-folded edges, and restricts public access to live equipment. Available from MEK Uganda for commercial, institutional and industrial buildings.
Key Features
- Lockable door hinged to the body, opening to 110°
- Multi-folded periphery that keeps water and debris out
- Resistant to mechanical impact
- Four wall-mounting holes at the back, with knockouts
- High tensile strength and rugged construction
- Optional dimensions and structures to suit the opening
Technical Specifications
- Enclosure: Sheet steel, 1.2 mm to 1.5 mm
- Door: Sheet steel, 1.2 mm to 1.5 mm
- Mounting plate: Galvanised, 2.0 mm (varies)
- Finish: Dip-coat primed, textured powder-coated exterior
- Construction: All-round solid construction, gland plate with sealing gasket, door with lock
- Supplied with: Enclosure, door with lock, mounting plate, gland plate, sealing gasket and fixing accessories
Applications
- Restricting public access to electrical equipment in schools, hospitals, banks and offices
- Indoor non-hazardous areas in commercial and industrial buildings
- Protecting electronics and low-voltage equipment below 500 V
- Service access points in factories and warehouses
Frequently Asked Questions
What is an access panel door used for?
It provides a lockable steel door over electrical equipment so that only authorised personnel can reach it, protecting the public from live parts and the equipment from debris and water.
What is the access panel door made from?
The enclosure and door are 1.2 mm to 1.5 mm sheet steel, dip-coat primed with a textured powder-coated exterior, and the mounting plate is galvanised at about 2.0 mm.
Can I order a custom size?
Yes. MEK offers optional dimensions and structures. Contact MEK Uganda for a quotation.
To request a quotation or technical consultation, contact MEK Uganda at sales@mek.co.ug.
