Description

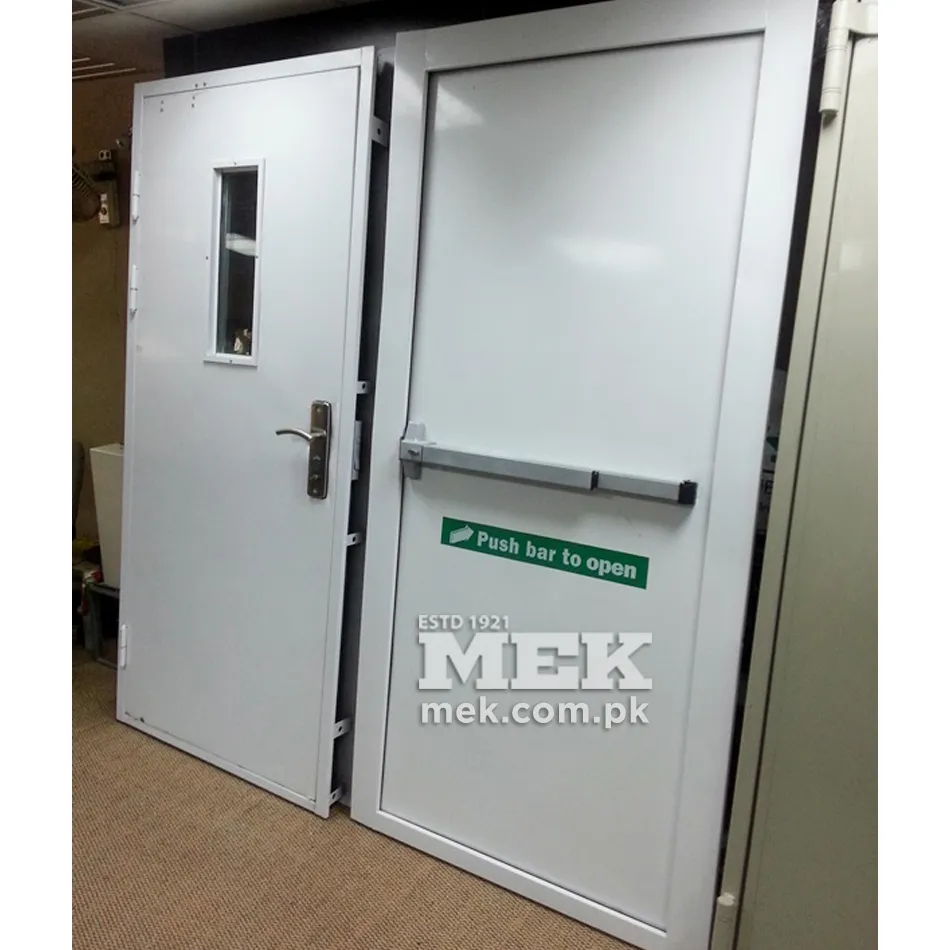

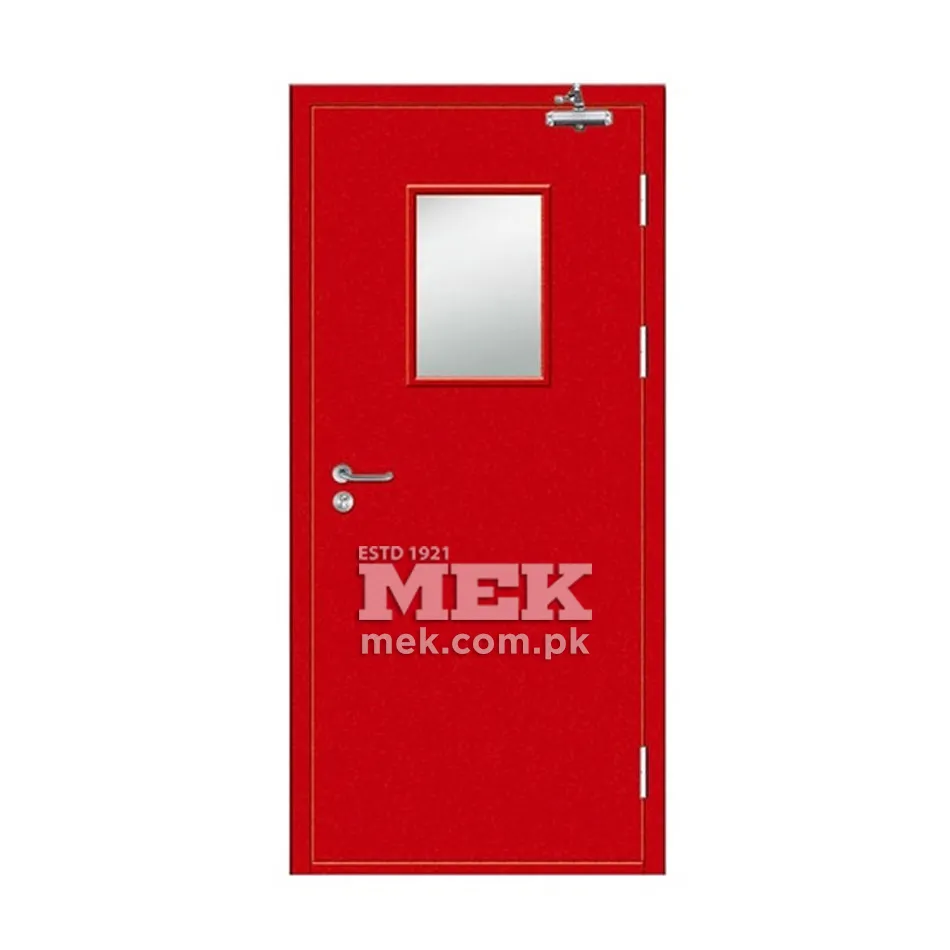

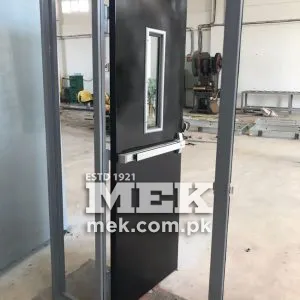

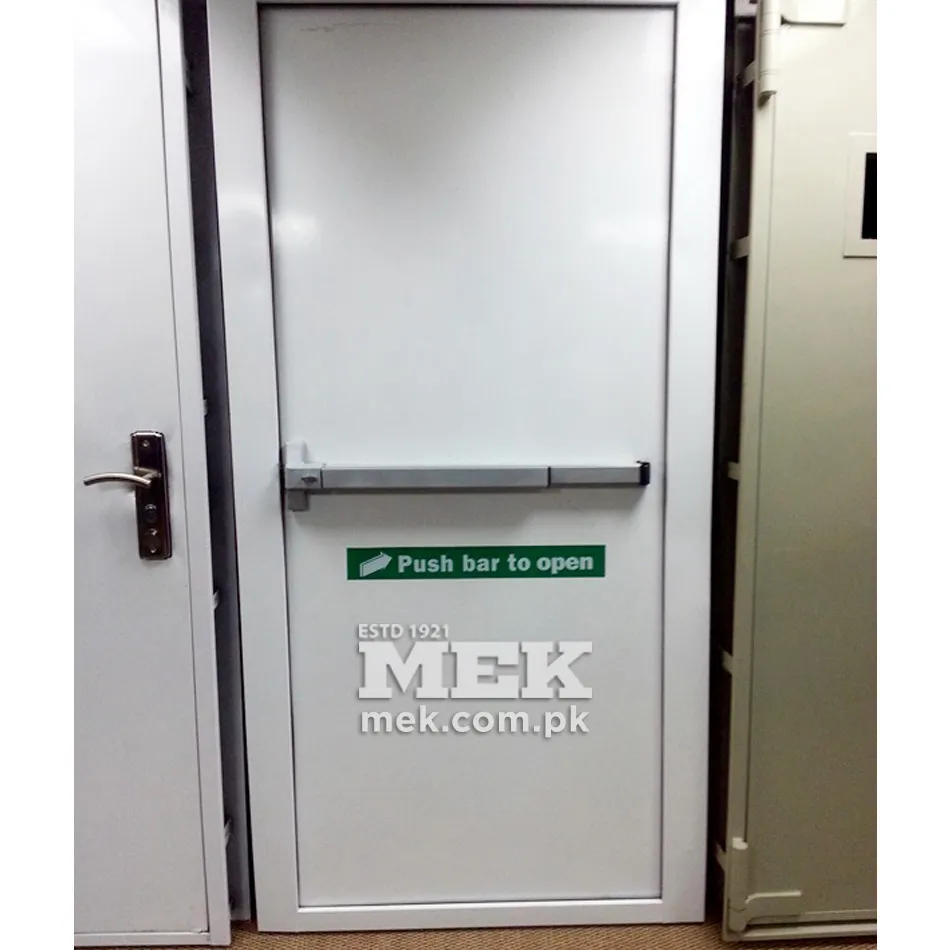

The Fire Exit Door MEK-1008 is a galvanised steel fire exit door with a square vision panel glazed in 180-minute fire-rated glass. It lets occupants see and exit safely while the door contains fire and smoke, and it is built to NFPA 80, NFPA 252, UL 10B and UL 10C. MEK Uganda supplies it for industrial, commercial and public buildings.
Key Features
- Square vision panel with 8 mm, 180-minute fire-rated glazing
- Supports free egress at all times while the door stays secured: normally locked, access by valid credential, exit always available
- Compatible with EN 179 emergency exit devices and EN 1125 panic exit devices
- Opens outward from the inside without keys, tools or special knowledge, in line with OSHA exit-door guidance
- Flat-mounting design and polarised locking connectors for option boards simplify installation
- Galvanised hollow metal construction suitable for external openings
Technical Specifications
- Door thickness: 45–75 mm
- Maximum size: Widths up to 4’0″, heights up to 8’0″; double-door configurations for widths above 4′
- Single door leaf: 44 mm thick, clear opening up to 1200 mm × 2850 mm (max. 3.5 m²)
- Face and back: 1.2 mm galvanised steel, RAL colour to customer choice
- Sub-frame: 2 mm folded galvanised steel U-channel
- Frame: 1.2 mm galvanised steel; clamp/wrap-around or fixed single/double rebate
- Smoke seal: Pre-fitted, to BS 476: Part 31.1 and BS EN 1634-3
- Hinges: 3–4 per door, CE marked, EN 1935:2002 Grade 13 or 14, satin stainless steel
- Door closer: Dorma TS72 / TS83 / TS93 / ITS96 or equivalent
- Glazing: 8 mm, 180-minute fire rated
- Kick plates: Brushed stainless steel, 200 mm standard height
- Finish: Standard RAL range, matt (30% gloss), minimum 40 microns over anti-rust primer
- Fire resistance: Up to 4 hours available
- Tested ratings: 30 to 120 minutes, third-party tested to UL 10C and NFPA 252
- Standards: NFPA 80, NFPA 252, UL 10B, UL 10C
Applications
- Pharmaceutical and chemical plants that require UL-certified fire doors
- Factories, warehouses and industrial plants
- Office blocks and commercial buildings
- Hospitals and healthcare facilities
- Schools and universities
- Shopping malls, supermarkets and other public buildings
Frequently Asked Questions
Can the Fire Exit Door MEK-1008 be used on external walls?
Yes. Its galvanised hollow metal construction is suitable for external use.
What fire ratings are available?
Standard ratings are 60, 90 and 120 minutes, with MEK doors third-party tested to UL 10C and NFPA 252 and fire resistance of up to 4 hours available.
How much does the Fire Exit Door MEK-1008 cost in Uganda?
Pricing depends on size, fire rating and hardware. Contact MEK Uganda for a quotation based on your opening schedule.
To request a quotation or technical consultation, contact MEK Uganda at sales@mek.co.ug.
