Description

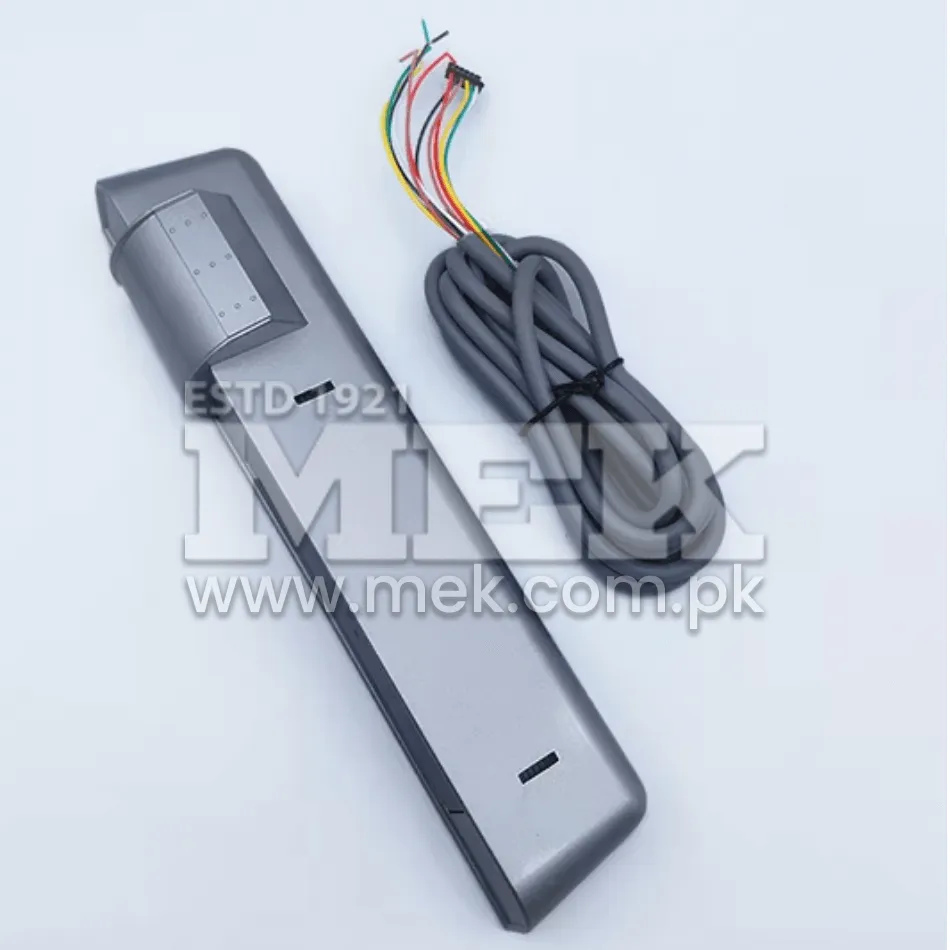

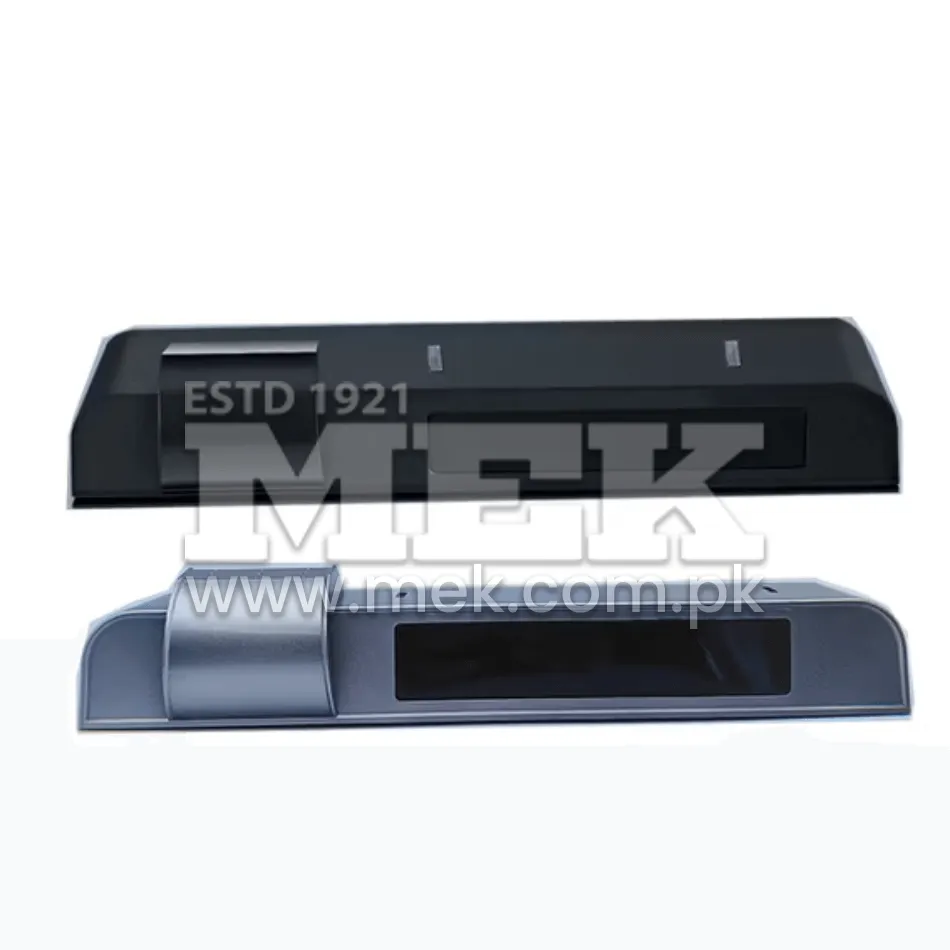

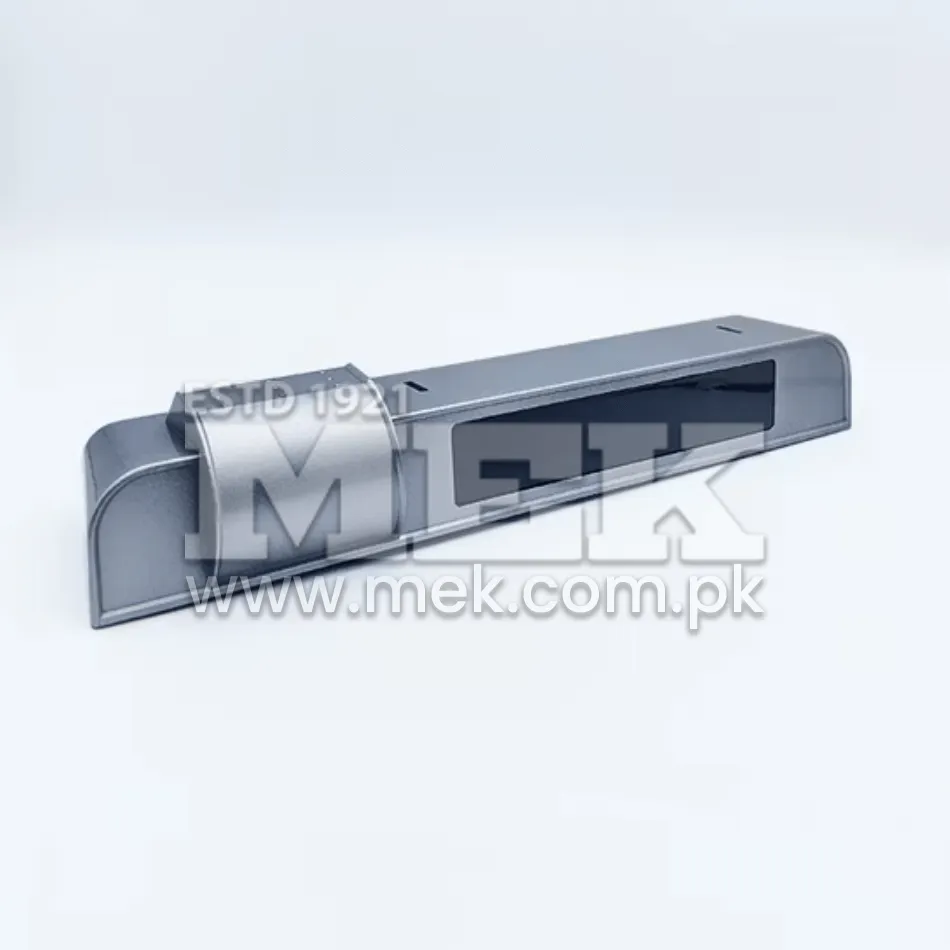

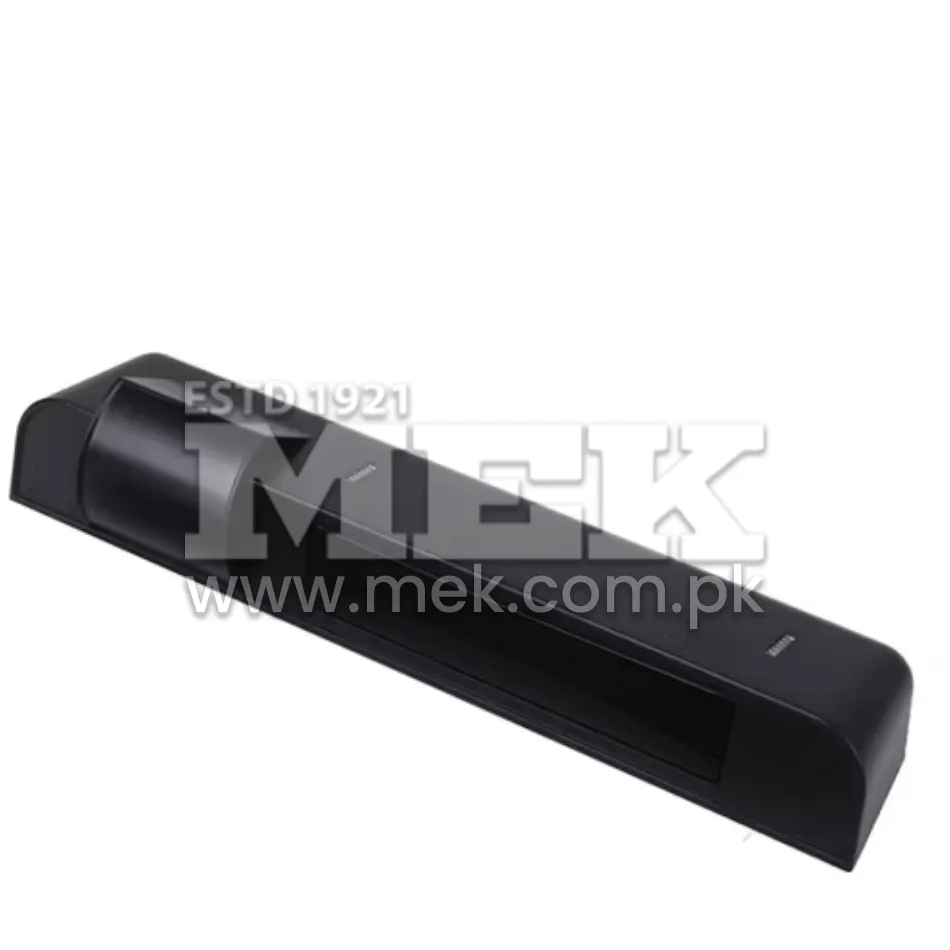

The MEK SwingSAFE is a failsafe active infrared sensor that mounts on moving swing or revolving door leaves to stop users being struck. It measures distance in real time with background suppression and a three-dimensional detection field suited to people with disabilities. MEK Uganda supplies it for automatic doors that must meet European door safety standards.
Key Features
- Failsafe active infrared with background suppression
- Three-dimensional detection field, suited to users with disabilities
- Typical reaction time of 64 ms; door stops or slows on detecting an obstacle
- Continuous presence detection

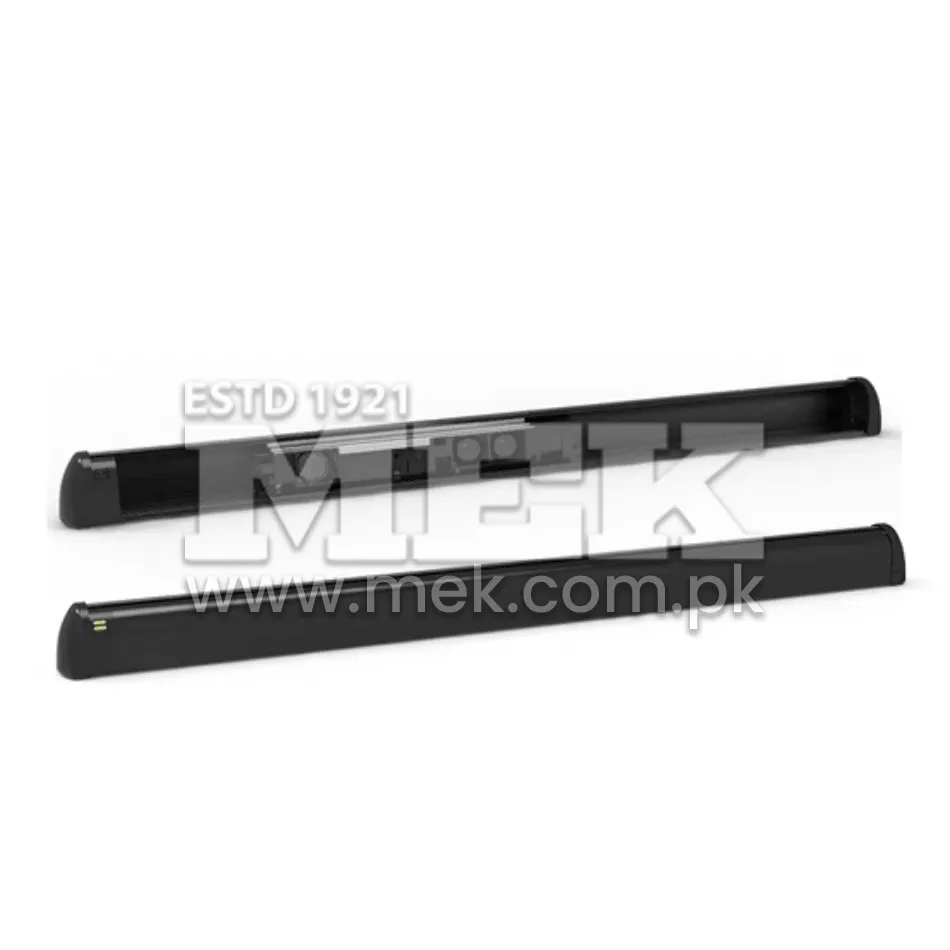

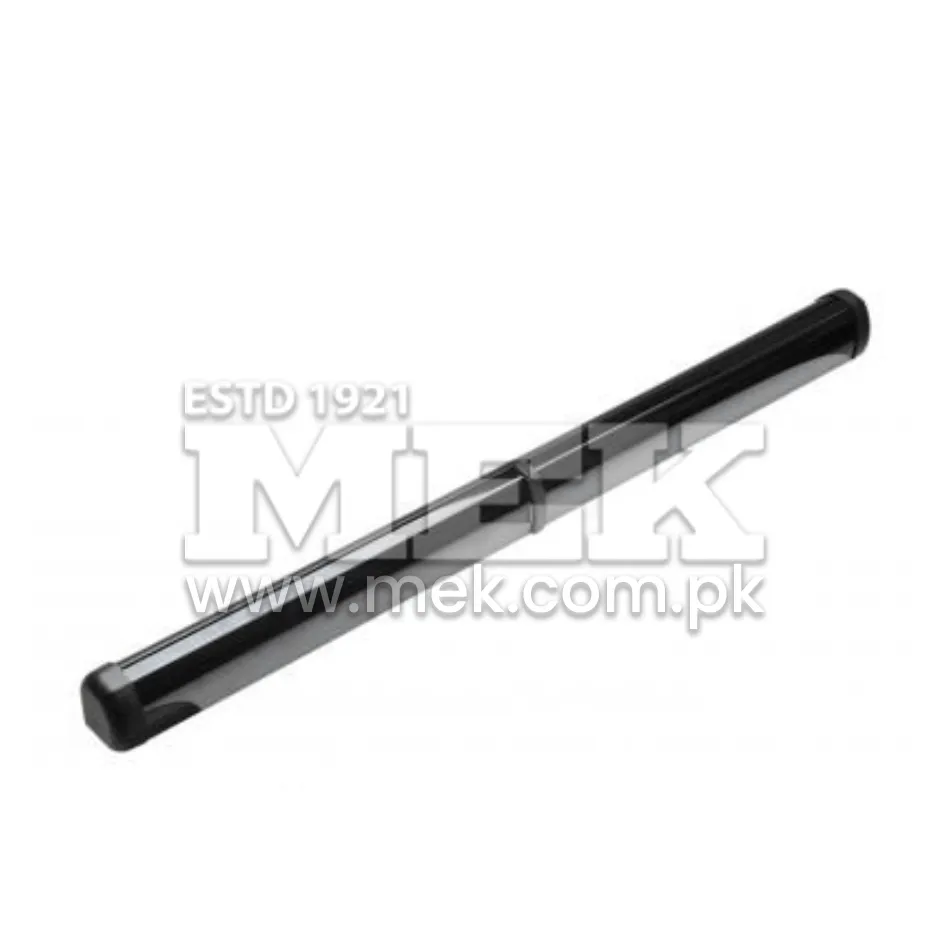

- Modular: up to 4 modules, or up to 6 when powered by 24 V DC
- Expected lifetime of 20 years
- Compliant with EN 16005, DIN 18650-1, EN 12978 and EN ISO 13849-1 PL «c» Cat. 2
Technical Specifications
- Emission field: 400 mm (width) × 70 mm (depth) at 2 m mounting height, four active spots
- Installation height: 1.3 m to 3.5 m
- Typical reaction time: 64 milliseconds
- Supply: 12–24 V AC ±10% / 12–30 V DC -5%/+10% (SELV-compatible power supplies)
- Consumption – Master Module: 95 mA @ 24 V AC / 70 mA @ 24 V DC; 170 mA @ 12 V AC / 130 mA @ 12 V DC
- Consumption – Other Modules: 85 mA @ 24 V AC / 60 mA @ 24 V DC; 180 mA @ 12 V AC / 113 mA @ 12 V DC
- Outputs: 2 relays, potential-free contact
- Maximum contact voltage (outputs): 42 V AC/DC
- Maximum contact current: 1 A (resistive)
- Maximum switching power: 30 W DC / 42 VA AC
- Input: 1 optocoupler (potential-free)
- Maximum contact voltage (input): 30 V
- Voltage threshold: High >10 V DC, Low <1 V DC
- Modules: Up to 4 modules, or up to 6 modules if powered by 24 V DC
- Minimum detectable reflectivity: 5% at 850 nm infrared wavelength
- Degree of protection: IP53
- Temperature range: -25 °C to +55 °C
- Humidity: 0–95% RH, non-condensing
- Expected lifetime: 20 years
- Compliance: EMC 2004/108/EC; MD 2006/42/EC; ROHS 2 2011/65/EU; DIN 18650-1:2010 ch. 5.7.4; BS 7036-2:1996; EN 16005:2012 ch. 4.6.8; EN 12978:2003 + A1:2009; EN 61508:2010; IEC 61496-2:2006; BGR 232; EN ISO 13849-1:2008 Performance Level «c» CAT. 2
Applications
- Automatic swing doors in hospitals and clinics
- Revolving doors at hotels, banks and office lobbies
- Public buildings requiring accessible, standards-compliant doors
- Indoor and semi-protected outdoor door installations
Frequently Asked Questions
Which doors is SwingSAFE designed for?
It is a safety sensor for automatic swing and revolving doors.
Does it need to be tested by the door controller?
Yes. The door control system must monitor the sensor at least once per door cycle.
Is pricing available online?
Pricing depends on door size, configuration and accessories. Contact MEK Uganda for a quotation tailored to your opening.
To request a quotation or technical consultation, contact MEK Uganda at sales@mek.co.ug.
